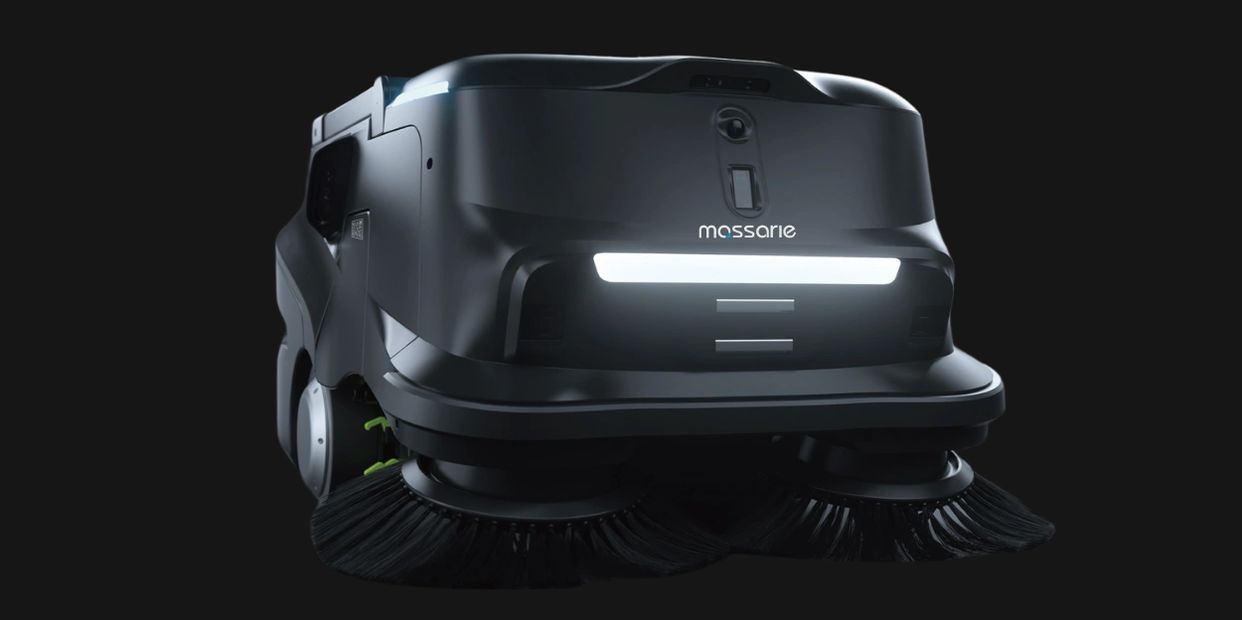

About MT1

Cleaning mode                 Cleaning area (sq.ft/h)

  0.3 m/s                                    3,767 - 5,382

  0.4 m/s                                    5,382 - 7,101

  0.5 m/s                                    6,564 - 8,819

  0.6 m/s                                    7,972 - 10,225

  0.7 m/s                                    9,149 - 11,842

  0.8 m/s                                    10,764 - 13,564

  0.9 m/s                                    11,842 - 13,993

  1.0 m/s                                    12,917 - 16,684

Cleaning mode     Gear level        High                              Medium                             Low

                                0.3m/s           18,299 （sq.ft）           26,910（sq.ft               30,139 sq.ft

                                                          1700（m2）                2500（m2）                  2800m2

                                 0.4m/s            24,757                          35,524                              40,903

                                                            2300                             3300                                3800

                                 0.5m/s             30,139                           45,208                            51,668

                                                            2800                               4200                                4800

                                 0.6m/s             36,597                          54,903                               62,434

                                                             3400                             5100                                 5800

Sweeping

                                 0.7m/s           43,056                          63,509                                73,208

                                                            4000                           5900                                    6800

                                 0.8m/s          49,514                           73,208                                  86,111

                                                          4600                            6800                                      8000

                                 0.9m/s           54,903                         82,887                                   96,875

                                                            5100                          7700                                       9000

                                 1.0m/s           60,291                           91,493                                 106,568

                                                         5600                                 8500                                   9900

Cleaning mode                       Installation of side brushes                         Without side brushes

                                                        27.56 inches                                                  13.78 inches

    Sweeping                                          700mm                                                          350mm

1. Adjustable trash height: 0-3.94 inches (0-10 cm). Default trash length + width: 11.81 inches (30 cm), maximum support: 17.72 inches (45 cm).
2. 100% sweeping able trash size: Length 8.66 inches (22 cm), width 2.56 inches (6.5 cm), height 2.56 inches (6.5 cm) equivalent to a 500mL water bottle.
3. This size is better than a conventional hand-push sweeping device of the same size
4. Max single trash weight: 1.1 lbs. (500g).

Operating State            Max Barrier Height            Max Ravine Width          Max Climbable Slope

Non-Clean Operation       0.79 in (20 mm)                1.18 in (30 mm)                         8°

Cleaning operation           0.79 in (20 mm)                1.18 in (30 mm)                         8°

Operating State                        Minimum passing width                   Minimum turnaround width

Cleaning operation                        29.5 in (750 mm)                                 43.3 in (1100 mm)

Cleaning mode                           gear level                        Suction                                  note

                                                          Max                               400Pa             MT1 adopts a high-flow fan,

                                                        General                           100Pa             not a negative pressure fan.

Lidar scanning feature height: 19.09 in, 48.5cm

Minimum passing height: 20.47 in, 52cm

Filtration class F9;

01 Support water washing 3 times, when cleaning, please do not use sharp objects or tools to brush the filter, only to the water rinse, to avoid the filter is poked and broken.

02 Do not use any detergent when washing in water, use only water to avoid damage to the filter;

03 Whether it is washed, damp or wet, please be sure to dry it fully (prohibit the use of hair dryer hot air drying) before loading the whole machine for use, otherwise the dust will be more likely to adhere to the filter.

Note: After being washed/moisturized/wetted many times, the dust reduction effect and service life of the filter will be

affected to some extent
